​Our Geogrids offer a more economical way of constructing, new roads (paved/unpaved), working platforms , Haul roads for Wind Farms and Car Parks.

Our Geogrids enhances load distribution and rutting resistance under repeated loads, using a Geogrid and our engineering capabilities this can reduce the amount of aggregate you use up to 40% which makes using this product a must more cost effective solution.

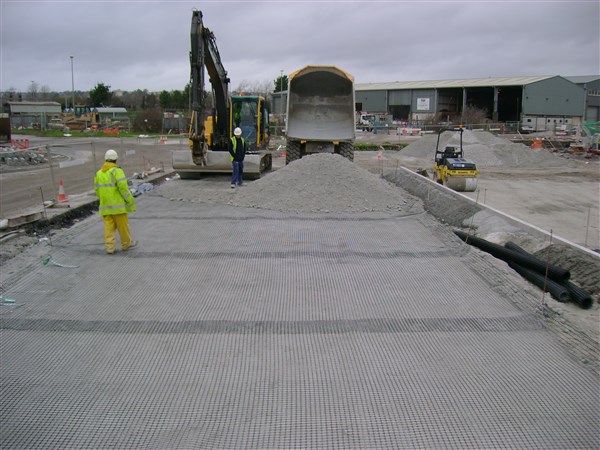

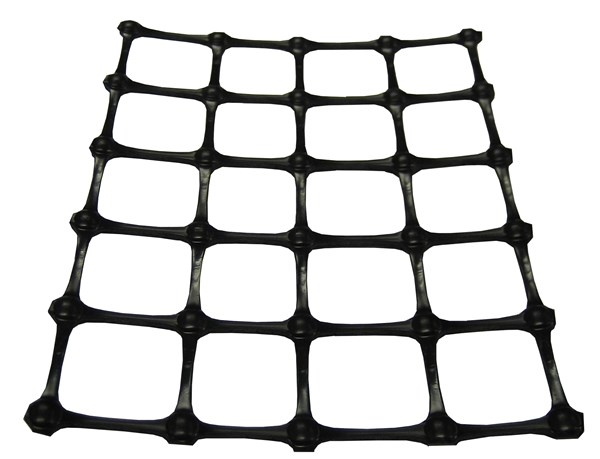

E’GRID™ Biaxial Geogrid Range

’GRID™ Biaxial geogrids from Wrekin can solve pavement problems by providing omni-axial reinforcement to granular sub-bases, capping layers & railway ballasts in areas of weak or variable soils. When granular particles are compacted over these grids they partially penetrate and project through the apertures to create a strong and positive interlock. The load dispersal effect from the interlocking mechanism increases shearing resistance within the soil, improving compaction and allowing the sub base thickness to be decreased, ultimately reducing construction time and costs.

Our fully qualified engineering team will give free technical support and solutions for our envolving product range. Using this free of charge service will ensure you are offered the best possible solution in the most cost effective way, this would cover all applications and would include detail drawings and calculations where necessary.

By collaborating with Wrekin, significant cost savings on multiple aspects of a project are available, typically as shown below. Along with cost reductions, the value engineered solutions will accelerate construction programme, improve site Health and Safety and reduce the overall environmental impact on a project.

Geogrid 1 600 0
Geogrid 2 600 0

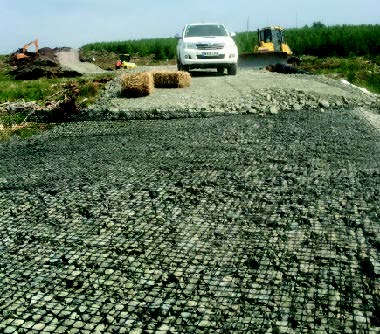

Wrekin’s SX Grid

A ‘punched and drawn’ virgin polypropylene biaxial grid that has been specifically developed to provide engineers with a cost effective solution to their reinforced soil requirements where the superior optimised performance and associated longevity provided by E’Grid is not required. Wrekin SX Grid is available in rolls up to 5.9m wide.

Wrekins Sx Grid 600 0

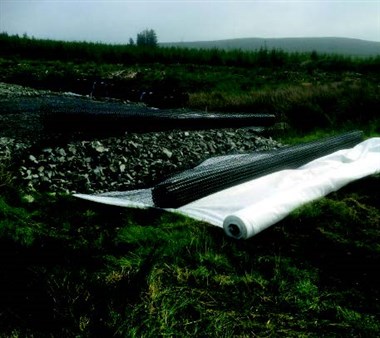

Wrekin’s Multitrack NW9

Non-woven geotextile is manufactured from virgin polypropylene in state-of-the-art facilities. It has been designed to offer optimum performance per unit weight giving the required mechanica robustness and excellent hydraulic properties required for separation and filtration applications. Its high elongation at break also offers greater resistance to installation damage than woven geotextiles.

Wrekins Multitrack Nw9 380 0
