Easi-Bloc™ is a precast concrete lego block offering solutions where limited space is available for containment. Our Interlocking Blocks are simplistic in design, allowing for effortless handling and speed of installation.
The Easi-Bloc™ concrete lego block contains a central cast-in lifting loop for ease of handling and installation. All products are manufactured in compliance with the BS EN 1992-1-1:2004 requirements.
Easi-Bloc

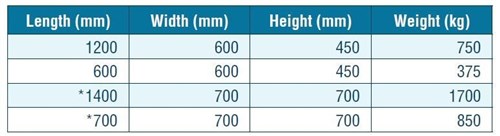

Easi-Bloc™ comes in two sizes, making them ideal for a variety of applications including:
- Segregation
- Temporary roadblocks
- Security barricades
- Storage bays
- Agricultural bays which are suitable for grain, silage etc.
- Earth retention
- Aggregate bays
- Partition Walling
- Landscaping
- Waterways/shoreline defences
- Highways
- Retaining walls
Product Benefits:
- Cost-effective
- Interlocking design for easy alignment and added security
- Quick Installation
- Durable
- Reusable product
- Cast-in lifting pin makes them easy to lift
L Walls
The precast L Wall units are ideal for forming both retaining and containing structures in residential, commercial, industrial and waste developments.
Key Features of L Shaped Concrete Retaining Walls

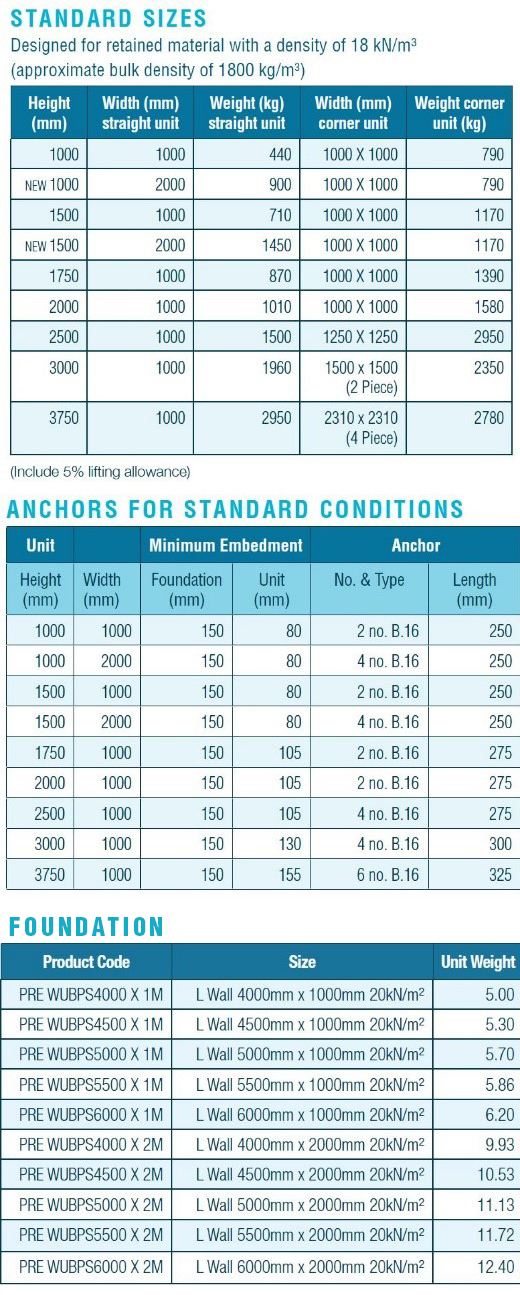

L Wall units are an ideal product where the speed of installation is necessary. They offer a fast, cost-effective solution for constructing retaining and containing developments. Standard sizes range from 1m high up to 3.75m high with a width of 1m or 2m depending on height dimensions. We now also offer L Walls in heights of 4m-6m.
Also, L-Wall units can be combined with either prestressed concrete panels or Rocket Walls™ to form storage facilities:
- Create storage bays without imposing a load to the building frame
- Can be loaded either side or both sides of the stem
- Available with heel feature to reverse(NI only)
- No heel-sheer reverse face (GB only)
- Retain material up to 18kN/m³ and AoR 30° or an additional 10kN/m³
- Large range of sizes available
- No specialist trades required
- Quick and easy installation
- Corner units available for the 1m widths
- Stability
Applications
- The precast concrete L wall units are ideal for forming both retaining and containing structures in residential, commercial, industrial and waste developments
- Making up levels within buildings
- Landscaping of housing estates
- General soil retention
- Waste recycling bunkers
- Load one side or both
- Corner units available
- General soil retention
- Retaining walls
- Fast installation
- Division Walls
- Bunker Walls
- Bulk Storage
Foundation
The foundation requirements should be determined by a qualified engineer. Units placed on a concrete foundation should be bedded on a mortar and wedged to attain correct alignment. FP McCann recommends that L wall units are suitably anchored to the foundation.
Safety Barriers
Our heavy-duty, interlocking jersey/safety barriers are ideal to use for a variety of applications, including many types of temporary works.
Product Applications
- Segregation
- Temporary roadblocks
- Security barricades
- Traffic management
- Flood defence
- Rockfall
Product Benefits
- Cost-effective
- Easy to handle and install
- Durable
- Interlocking design for easy alignment and added security
- Free-standing unit
- Provides a high level of containment
- The product can be painted on request
- Reusable product
